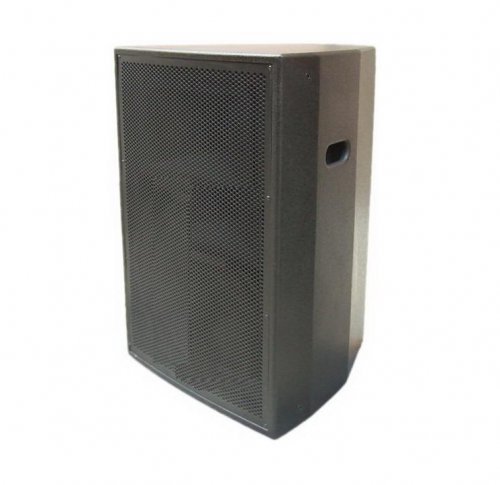

The HY-112 is a multi-angle trapezoidal, two way full rang passive enclosure designed for use in mobile speech and music sound reinforcement applications as well as in a wide range of fixed installations.The loudspeaker complement consists of a front loaded 12" low frequency driver and a 1.4" high frequency compression driver on a constant directivity 60΅γH x 40΅γHF horn, matched with an internal passive crossover network. The HY-112 includes flying variable rigging points, enabling it to be suspended and angled in permanent installations as well as in mobile applications. A pole mount socket is fitted for use with 35mm poles and speaker stands.Two recessed handles are provided for easy lifting and carrying and four rubber feet are fitted to the bottom of the cabinet. The cabinet is constructed with 18mm thickness plywood, screwed and glued together for maximum strength and rigidity, and includes a black perforated steel mesh grille. It is finished in durable black textured paint. A rear panel connector plate carries two Neutrik Speakon NL4MP connectors for connection to additional enclosures. Key Feature 1>.two-way full rang passive system 2>.300w,with 12inch LF and 1.4inch HF drivers, 3>.high-effeciency, constant-directivity stage system. 4>.Multi-angle trapezoidal enclosure 5>.Suspension points and pole mount cup 6>.Pro circuit provides HF driver protection. 7>.high fidelity, high sensitivity, high SPL Application 1>. For small sound system 2>. Theater effects system 3>. Conference Hall and AV activites 4>. Concert Hall 5>. Houses of worship 6>. Arenas and stadiums Specification * Frequency Response (΅ΐ3 dB): 52 Hz - 20 kHz * Sensitivity (1w/1m): 97 dB SPL * Long-term SPL: 123dB * Maximum SPL: 129 dB * Nominal Impedance: 8 ohms * Power rated: 300 watts * Peak Power handling: 600 watts * Nominal Dispersion: 60ºH x 40ºV * Crossover Frequency: 1.5 kHz * Dimensions (H x W x D): 589 mm x 366 mm x 375 mm * Enclosure Material: 18mm polywood * Surface Finished: black catalyzed polyurethane paint * Grille: 1.5mm black perforated steel framed * Net weight: 30 kg * Low Frequency Driver: LA1265156HY£¬ 12΅± 65mm voice coil, 156mm magnet * High Frequency Driver: HD-4404HY 1.4΅± HF driver, polymer diaphragm * Input Connectors: Neutrik NL4MPX2
