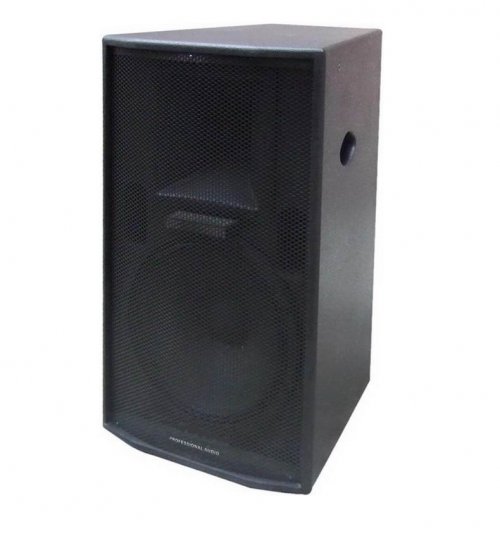

• HY-312 This model is for 1. for mid or small sound system 2. Theater effects system 3. Conference Hall and AV activites 4. Concert Hall 5. Houses of worship 6. arenas and stadiums Key Feature 1>.two-way full rang passive system 2>.500w RMS,with 12inch LF and 2inch HF drivers, high-3>.effeciency, constant-directirity stage system. 4>.Optimized trapezoidal enclosure design 5>.Suspension points and pole mount cup 6>.Rotatable 100/50ʽγHx40ʽγV horn 7>.high fidelity, high sensitivity, high SPL Description The HY-312 is a trapezoidal, two way full rang passive enclosure designed for use in mobile speech and music sound reinforcement applications as well as in a wide range of fixed installations.The loudspeaker complement consists of a front loaded 12"low frequency driver and a 2"high frequency compression driver on a rotatable 100/50ʽγH x 40ʽγHF horn, matched with an internal passive crossover network. The relatively short flare allows physical alignment of the HF and LF devices, and ensures that the wavefront is shaped smoothly, eliminating reflections in the throat area while giving excellent pattern control. The HY-312 includes flying variable rigging points, enabling it to be suspended and angled in permanent installations as well as in mobile applications. A pole mount socket is fitted for use with 35mm poles and speaker stands.Two recessed handles are provided for easy lifting and carrying and four rubber feet are fitted to the bottom of the cabinet. The cabinet is constructed with 18mm thickness plywood, screwed and glued together for maximum strength and rigidity, and includes a black perforated steel mesh grille. It is finished in durable black textured paint. A rear panel connector plate carries two Neutrik Speakon NL4MP connectors for connection to additional enclosure Specification * Frequency Response (ʽΐ3 dB): 65 Hz - 20 kHz * Sensitivity (1w/1m): 99 dB SPL * Long-term SPL: 126dB * Maximum SPL: 132 dB * Nominal Impedance: 8 ohms * Power rated: 500 watts * Peak Power handling: 1000 watts * Nominal Dispersion: rotatable 100/50ºH x 40ºV * Crossover Frequency: 1.2 kHz * Dimensions (H x W x D): 683 mm x 392 mm x 433 mm * Enclosure Material: 18mm polywood * Surface Finished: black catalyzed polyurethane paint *Grille: 1.5mm black perforated steel framed * Net weight: 32.5 kg * Low Frequency Driver: 1ʽΑLA1275200HY, 1ʽΑ12ʽ± 75mm voice coil, 200mm magnet * High Frequency Driver: 1ʽΑHD-7205HY, 2ʽ± compression driver. polymer diaphragm * Input Connectors: Neutrik NL4MPX2
