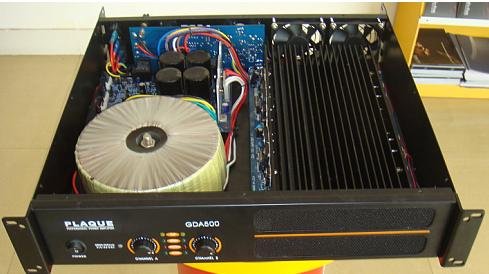

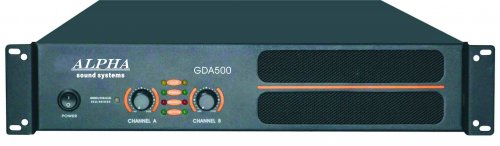

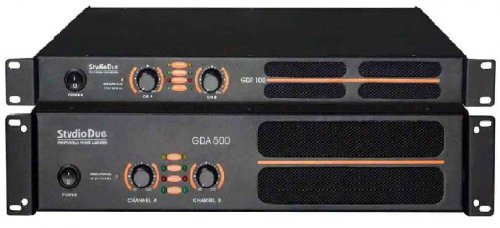

• MODEL GDA500 RMS @ 8 ohm Stereo 500W RMS @ 4 ohm Stereo 700W RMS @ 2 ohm Stereo 915W RMS @ 8 ohm Bridge 1300W RMS @ 4 ohm Bridge 1800W Signal to noise 103dB Slew Rate 50V/μS Damping Factor 350:1 Frequency response +/-0.015dB,20Hz+20KHz THD ≤0.1%Rated Power @ 8 ohm 1KHz IMD ≤0.1%Rated Power @ 8 ohm Input sensitivity 1.0V Input impedance 10K/20K ohurs,unbalanced or balanced Imput CMRR ≤-75dB Cross talk ≤-70dB LEP indicator Signal, Protect, Power, Clip/limiting, Bridge, Parallel Main power supply ~220V 50/60Hz Fuse Fuse:T8A Connector Input: Male/Female XLR; Output: Speakon / Binding post Dimensions(mm) 420WX410DX44H (1U) Class of circuit H Net weight 17.85kg

MODEL GDA500 RMS @ 8 ohm Stereo 500W RMS @ 4 ohm Stereo 700W RMS @ 2 ohm Stereo 915W RMS @ 8 ohm Bridge 1300W RMS @ 4 ohm Bridge 1800W Signal to noise 103dB Slew Rate 50V/μS Damping Factor 350:1 Frequency response +/-0.015dB,20Hz+20KHz THD ≤0.1%Rated Power @ 8 ohm 1KHz IMD ≤0.1%Rated Power @ 8 ohm Input sensitivity 1.0V Input impedance 10K/20K ohurs,unbalanced or balanced Imput CMRR ≤-75dB Cross talk ≤-70dB LEP indicator Signal, Protect, Power, Clip/limiting, Bridge, Parallel Main power supply ~220V 50/60Hz Fuse Fuse:T8A Connector Input: Male/Female XLR; Output: Speakon / Binding post Dimensions(mm) 420WX410DX44H (1U) Class of circuit H Net weight 17.85kg
