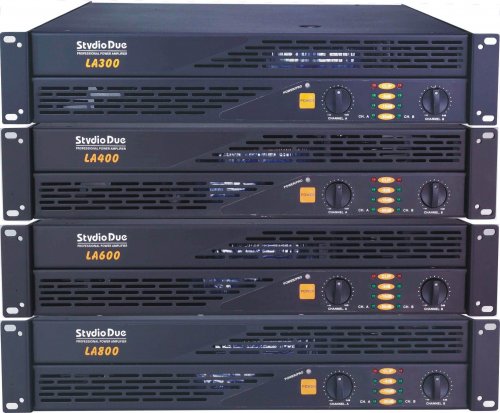

• Model LA-600 Output 8Ohms 1KHz0.1% THD stereo Mode: 2 x 600W Output 4Ohms 1KHz0.1% THD stereo Mode: 2 x 900W Output 2Ohms 1KHz0.1% THD stereo Mode: 2 x 1100W Output 8Ohms 1KHz0.1% THD bridge Mode: 1800W Output 4Ohms 1KHz0.1% THD bridge Mode: 2000W Signal / noise: 103dB Slew Rate: 60v/μs Damping factor: 400:1 Fuse: T8A Power Supply: 220V 50/60Hz Input Sensitivity: 0.775V,1.0V,1.55V Frequency Response @1 Watt into 8 Ohm: ±0.1dB, 20Hz -20kHz THD+N: ≤0.01% @ 8Ω1kHz IMD: ≤0.01% @ 8Ω at rate output Input Impedance: 20k Ohm Balanced or10k Ohm Unbalanced Crosstalk at Rated Output 8 Ohms 1kHz: ≤-70dB Imput CMRR: ≤-75dB Indicators: Signal, Protect, Clip, Limited Net Weight: 28kgs Dimensions:(mm) 483W x 420D x 88H Characteristic of LA Series: (1). Toshiba transistor (2). Soft start. (3). DC protect. (4). Overheat protect when the temperature of amplifier over 95℃ (5). Overload protect. (6). Short circuit protect. (7). Limiter function. (8). Crossover inside to cut off the low frequency to protect your speaker. (9). Bridge and parallel mode for choosing. (10). Sensitivity input selection. (11). Output impedance selection (4 ohm & 8 ohm) (12). Ground selection. (13). Very effective cooling system. The speed of the fan is adjustable according to the temperature

Model LA-600 Output 8Ohms 1KHz0.1% THD stereo Mode: 2 x 600W Output 4Ohms 1KHz0.1% THD stereo Mode: 2 x 900W Output 2Ohms 1KHz0.1% THD stereo Mode: 2 x 1100W Output 8Ohms 1KHz0.1% THD bridge Mode: 1800W Output 4Ohms 1KHz0.1% THD bridge Mode: 2000W Signal / noise: 103dB Slew Rate: 60v/μs Damping factor: 400:1 Fuse: T8A Power Supply: 220V 50/60Hz Input Sensitivity: 0.775V,1.0V,1.55V Frequency Response @1 Watt into 8 Ohm: ±0.1dB, 20Hz -20kHz THD+N: ≤0.01% @ 8Ω1kHz IMD: ≤0.01% @ 8Ω at rate output Input Impedance: 20k Ohm Balanced or10k Ohm Unbalanced Crosstalk at Rated Output 8 Ohms 1kHz: ≤-70dB Imput CMRR: ≤-75dB Indicators: Signal, Protect, Clip, Limited Net Weight: 28kgs Dimensions:(mm) 483W x 420D x 88H Characteristic of LA Series: (1). Toshiba transistor (2). Soft start. (3). DC protect. (4). Overheat protect when the temperature of amplifier over 95℃ (5). Overload protect. (6). Short circuit protect. (7). Limiter function. (8). Crossover inside to cut off the low frequency to protect your speaker. (9). Bridge and parallel mode for choosing. (10). Sensitivity input selection. (11). Output impedance selection (4 ohm & 8 ohm) (12). Ground selection. (13). Very effective cooling system. The speed of the fan is adjustable according to the temperature
