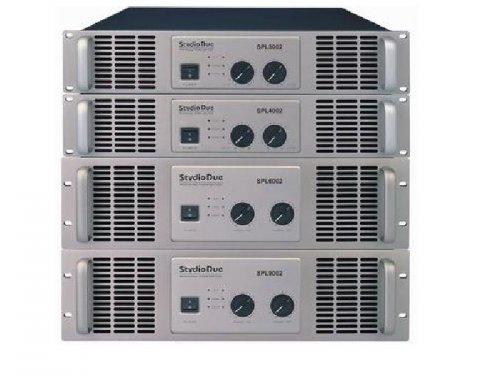

Ενισχυτές StvDio due SPL-3002 2x350WATT 8ohm
StvDio due
Model: SPL-3002 2x350WATT 8ohm
Τελικός ενισχυτής ισχύος StvDio due SPL-3002 (2x350W), για live, clubs και εγκαταστάσεις ήχου. Ανήκει στην κατηγορία «Ενισχυτές» του StockAudio.gr. Δείτε παρακάτω τα πλήρη τεχνικά χαρακτηριστικά. Για πληροφορίες και διαθεσιμότητα επικοινωνήστε μαζί μας.
Κωδικός προϊόντος: 183
Διαθεσιμότητα: Στο κατάστημα
Τεχνικά χαρακτηριστικά
2x350WATT 8ohm
SPECIFICATIONS
Model SPL3002 SPL4002 SPL6002 SPL9002
Output 8Ohms 1KHz0.1% THD stereo Mode: 2 x 350W 2 x 550W 2 x 700W 2 x 900W
Output 4Ohms 1KHz0.1% THD stereo Mode: 2 x 500W 2 x 800W 2 x 1000W 2 x 1350W
Output 2Ohms 1KHz0.1% THD stereo Mode: 2 x 750W 2 x 1200W 2 x 1500W 2 x 2000W
Output 8Ohms 1KHz0.1% THD bridge Mode: 1000W 1600W 2000W 2700W
Output 4Ohms 1KHz0.1% THD bridge Mode: 1500W 2400W 3000W 4000W
Signal / noise: 103dB 105dB 105dB 106dB
Slew Rate: 60v/μs 60v/μs 80v/μs 80v/μs
Damping factor: 400:1 450:1 500:1 550:1
Fuse: T8A T10A T15A T20A
Power Supply: 220V 50/60Hz
Input Sensitivity: 0.775V,1.0V,1.55V
Frequency Response @1 Watt into 8 Ohm: ±0.1dB, 20Hz -20kHz
THD+N: ≤0.01% @ 8Ω1kHz
IMD: ≤0.01% @ 8Ω at rate output
Input Impedance: 20k Ohm Balanced or10k Ohm Unbalanced
Crosstalk at Rated Output 8 Ohms 1kHz: ≤-70dB
Imput CMRR: ≤-75dB
Indicators: Signal, Protect, Clip, Limited
Net Weight: 21kgs 24kgs 30kgs 33kgs
Dimensions:(mm) 483W x 480D x 88H 483W x 480D x 133H
Characteristic of SPL series
(1) Motorola metal transistor
(2) Soft start.
(3) DC protect.
(4) Overheat protect when the temperature of amplifier over 95℃.
(5) Overload protect.
(6) Short circuit protect.
(7) Limiter function.
(8) Crossover inside to cut off the low frenquency to protect your speaker.
(9) Bridge and parallel mode for choosing.
(10) Sensitivity input selection.
(11) Output impedance selection (4 ohm & 8 ohm)
(12) Ground selection.
(13) Very effective cooling system. The speed of the fan is adjustable according to the temperature.
(14) Can work very well at 2 ohm.
