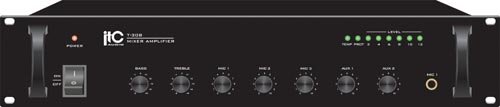

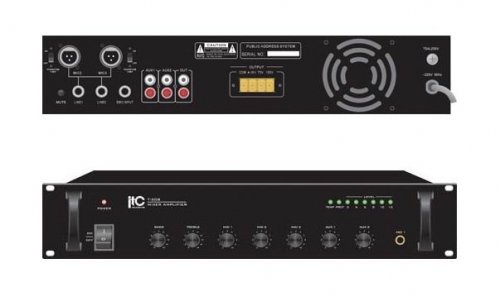

Public Address Audio Systems Alpha T-60B (60WATT)

Descriptions T-60B series of public address mixer amplifiers have power ratings from 30 to 650 watts and feature optional balanced MIC inputs, AUX level inputs and EMC (priority) level inputs. Priority muting is achieved via MIC 1 and EMC 1 for overriding music for paging and emergency alarms. Individual gain controls are provided for MIC and AUX inputs, Bass and treble controls and master volume control are provided for overall tone control. 4~16, 70V, 100V and COM speaker outputs are provided. (4, 8, and 50V Outputs optional). Extensive protection from short-circuit, clipping and over-temperature. Features Three MIC Inputs Two Aux Inputs One EMC priority Input EMC has priority over all inputs except MIC1 Individual Volume Controls for MIC and Aux Bass, Treble Tone and Alone Volume Controls 4~16, 70V, 100V and COM Speaker Outputs Master Volume Control Optional Panel with/without handhold Rated Power Output T-60B: 60W Speaker Outputs 4~16, 70V, 100V Input MIC 1,2,3: 5mV/600 ohms, Balanced,MIC1 6.3 balanced MIC2,3 XLR balanced with phanton power AUX 1,2: 250mV/15k ohms, Unbalanced EMC : 250mV/15k ohms, Unbalanced Tone Bass}10dB at 100Hz Treble}10dB at 10KHz Frequency Response 50Hz - 15KHz S/N Ratio MIC 1,2,3: 66dB; AUX 1,2: 80 dB THD Less than 1% at 1kHz, 1/3 rated power Crosstalk MIC: 80dB; AUX 85dB Muting Function MIC 1 overrides other input signals with 0-30 dB attenuation EMC overrides all inputs except MIC 1 Controls Individual gain controls, power switch Indicators Power LED, LED level meter, protect Protection AC fuse, short-circuit and high temperature Power Requirements ~110V/60Hz, ~220V/240V/50Hz, 24V DC(optional) Power Consumption T-30B: 60W Weight T-30B: 8.9kg Dimensions (W~D-H) 484x435x88mm Finish Panel: aluminum plate, black or golden (optional) Case: steel plate, black
