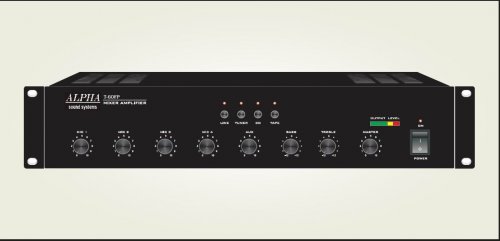

Public Address Audio Systems Alpha T-60FP (60WATT)

Descriptions Features Rated Power:30W,60W,120W Constant voltage 50V, 70V and 100V lines and low impedance 4 ohms speaker terminals 4 Aux input, with inter-lock to avoid blending 4 balanced XLR Mic, inputs with selectable priority and each with phantom power With remote priority input to select background music when paging Special low cut filter built-in PRE OUT for other signal processing equipment Built-in 2 tone and 4 tone chime options Individual input volume and master volume control Level meter and power indicator AC and DC operation Current limiter, overloading, short circuit and thermal protection Phoenix connector for easy installation Specifications Model T-30FP T-60FP T-120FP Rated power 30W 60W 120W Power consumption 80W 120W 200W 4 MIC INPUT XLR balanced with phantom power Sensitivity -50 -2dB /2.5-500 mV Signal to noise ratio >68 dB Frequency response 40 / 17,000 Hz (-3 dB) Phantom power +48V 4 AUX INPUT Tuner input sesitity/impedance 200 mV /47 K ohms CD/line input sesitivity/impedance 500 mV /47 K ohms Signal to noise ratio 90 dB Frequency response 40/18,000Hz (-3 dB) Contro Bass }12 dB Treble }12 dB Chime 2 tone and 4 tone options OUTPUT Output electro/impedance 775 mV /47Kohms Output REC/impedance 200 mV /1Kohms Distortion < 0.1% OTHERS AC mains input ~220V /50-60 Hz, 24V DC Dimension 484X340X88mm 484X380X88mm Weight T-30FP :12Kg T-60FP :13.5 Kg T-120FP :15.
