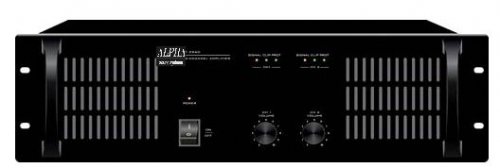

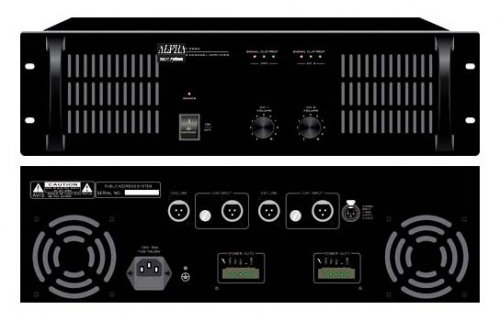

Public Address Audio Systems Alpha T-2S120 (120WATT)

Descriptions Descriptions With two separate power amplifiers in a single chassis and power ratings from 60 to 500 watts RMS, these sleek, attractive units provide a compact solution for PA system amplification and distribution. Each channel has its own input and 4 ohm, 50V,70V and 100V speaker outputs, so a wide variety of audio sources and speaker zones can be easily configured. With extensive heat-sinking and quiet fan-less operation, protection against short-circuit, clipping and over-temperature,these amplifiers are perfect for small to mid-size public address applications. Features ■ 2 independent amps in a single chassis ■ LED status indicators ■ Short-circuit, clipping and high-temp protection ■ Volume controls for each channel ■ Low impedance and constant voltage speaker outputs ■ 3U Rack-mount Chassis Specifications Model T-2S60 T-2S120 T-2S240 T-2S350 T-2S500 Rated Power Output 2x60W 2x120W 2x240W 2x350W 2x500W Input Sensitivity 775mV/0dB S/N Ratio >90dB S/N Ratio 50Hz-15KHz±3dB THD <1% Radiator Method Compulsive wind cooling Indicator Power, signal, protection and overheat Protection Power, overheat, overload and short circuit Power Requirements ~110V/60Hz, ~220V/240V/50Hz Power Consumption 220VA 440VA 880VA 1000VA 1200VA Dimensions 484x315x132mm Weight 15.9 kg 17.75 kg 18.8 kg 131.1 kg 33.7kg
